Monday, August 30, 2010

undercarriage painted

Finishing off the underside of the car has been a slow grind, mainly because I have had limited time to work on it in the last few weeks. I had already got the bulk of the crud off the car, so it was mainly a case of cleaning the sheet metal with lacquer thinner and going over any areas I missed the first time round. I decided it would be much easier to mask off the transmission if I removed the cross-member; I will be replacing the cross member later as the stock part won't fit with either a T5 or a TKO which are my choices for transmission upgrade. I raised the car about half an inch at the front with the floor jack and squeezed another stand under the transmission. When I let the car back down the stand was firmly wedged under the transmission so I just unbolted the cross-member and cleaned up the newly exposed metal.


Cleaning the front half of the underside was reasonably straightforward as the floor is mostly level, but the rear half was much more involved due to all the little nooks in the sheet metal. There were still quite a few areas that needed wire wheeling, so I masked off the clean portion before I got stuck into the second half.


I used a selection of smaller wire wheels on my new die grinder. This was the first time I really used my new compressor to work on the car, and I found it very adequate. The tank is 25 gallons, so there is no shortage of "power" through the various air tools...but it is really LOUD when it's running...because my garage is on the top of the building you can hear the compressor's thunderous vibrations throughout the house.

In this way I dealt with virtually everything - what was left was attacked by hand with a wire brush. I didn't get it 100% perfect, but as my father would say when working on projects around the house, "a blind man would be glad to see it." This little phrase was trotted out umpteen times while I was growing up whenever things didn't come out perfectly!


The only places where I couldn't completely remove the surface rust were the rear sides of the two front torque boxes. I hit both with a good coating of zero rust which I applied with a small foam brush. There is an access hole in the driver side torque box to accommodate the fuel line. I decided it would be a good idea to blow out the void inside with some compressed air...


The picture below shows what was inside after I swept up the floor. I have to admit I was astonished by how much dirt and grit came out. This was my cue to blow air into every opening I could find in the floor pan or frame rails. I had a VERY dusty garage when I was done!


After sweeping up the dust, I completed the cleaning up of the underside to my satisfaction by going over the entire area with a paper towel soaked in acetone. This operation was enough to wipe out my forearms for the next two days. I then went over the whole area with metal prep, rinsed the residue off with a sponge and a lot of water and dried the car with compressed air. All in all this was a real work out. The next day I started masking off the bits I didn't want to paint, starting with the transmission.


Inside the car every bolt hole and access opening was taped over.


In the trunk area I had a chance to practice the masking method I got from Larry Lyles. I started by carefully applying tape around the edges of the opening exactly where I wanted the edge of the paint to be (I try to use the blue decorators tape when applying tape directly onto the bodywork as it is less likely to remove any paint and/or leave a mess later). I then assembled a grid of wider pieces of masking tape with the sticky side down:


Masking paper is then pressed onto the tape from below. It is best to cut the masking paper slightly too small, and then add more tape at the edges from below the opening. This results in a very strong masked barrier: if it gets poked or prodded during the painting it's not going to rip. It took me two hours of taping to completely mask the car - this was actually one of the most fun parts of the process.


I have never painted a car before, and don't even really have that much experience of "rattle" cans. I knew I needed to do a lot of research before buying a gun - I am somewhat limited by my paltry 25 gal. compressor, so most of the HVLP guns are out...I was asking around in BAMA for some help and...well...basically Larry S. told me not to bother buying a gun at all, but to use his instead. Larry also gave me a lot of advice on how to do the painting which all proved invaluable. The gun I used was the gravity feed type with the paint cup below the trigger (the cup-on-top guns are never going to work under the car!). I ran the gun at approx 90 psi...and it was amazing! Like using the power of 15 rattle cans at the same time.

I also researched the types of paint available, and decided on PPG epoxy primer. This was a big decision, as I'll have to stick with it for the whole car, but after doing the painting I'm happy with my choice. I actually used one quart of PPG DP74LF red oxide, which I mixed 2:1 with PPG DP401LF activator and about 20ml of acetone. When the paint was all mixed up I strained it, loaded up the gun and went for it. I actually had about a third of the paint left over, which I had to toss. Next time I will have a bunch of parts ready to prime with any leftover paint. This is the result around the gas tank opening:

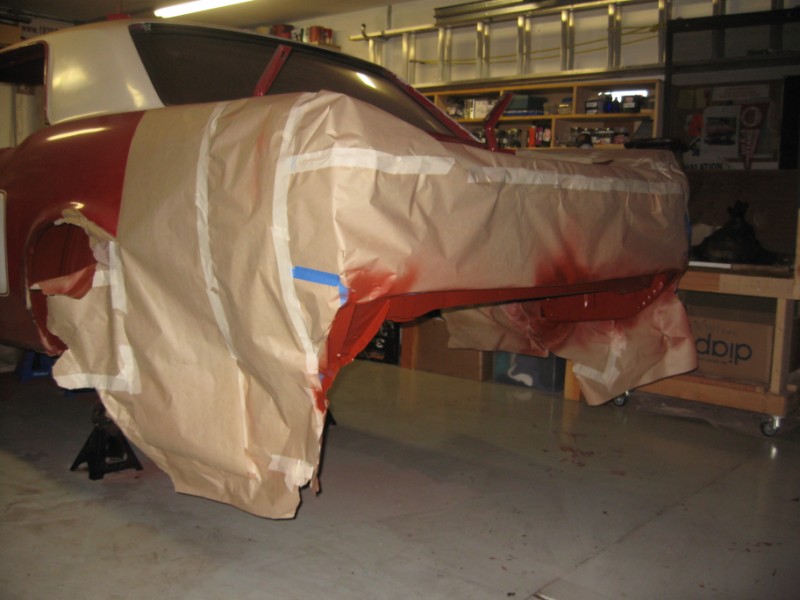

The area behind the rear valance was tough to mask around; I just decided more is better in  this area, and then covered the rest of the car with dust sheets, which were removed before this picture was taken:


A bit of paint on the jack stands is actually a good thing - it shows they've been properly used!


Overall, applying the paint took about an hour. Quite a bit of this time was taken up with positioning the gun, due to all the surface contours. It took less than five minutes to peel off all the masking paper the next day.


I have to say I am delighted with the results. There are one or two tiny patches where the paint is a little bit light, but it is 99% okay with very few drips. For my first time loose with a paint gun I am really happy with how it came out. A huge milestone has been reached...plus no more crawling under the car, for a while!

Sunday, August 1, 2010

undercarriage part two

I wrote in my last post about working on the car in short bursts, and in lots of ways this has been a successful approach for this part of the project. One drawback though is that I never accomplish enough in a single session to warrant a new blog posting. Getting the rear axle and suspension out of the way was a big step forward, but there isn't usually that much to show for an hour's grinding. To keep track of progress I made a rough sketch of the underside of the car and colored in the various sections as I went along. I found this a great way of monitoring where I was up to, and it really helped me stay motivated.


After the rear end was removed I continued working at the transition panel, concentrating on small sections and leaving anything I could not get at with a 4.5 inch knotted wire wheel for later.


My modus operandi has been to chip away at each section by first going around the edge to define the area, and then working over any irregular areas like welded on brackets etc.


Eventually this leads to large patches of relatively flat metal which need to be cleaned up - I got a lot of the crud off this area by scrapping the body over with a plastic body filler spreader before attacking it with the wheel.


After chugging away for a good few sessions the transition panel came out rather well, even if I do say so myself. I have been lucky so far and have not found any rust - which is great!


Then it was onto the transmission tunnel:


Again, I was able to get a lot of the surface muck off by scraping the entire area with a plastic body filler spreader and a wire brush - it would have made a lot more mess to go straight in with the wheel.


One more physical endurance session later and the tunnel was done as far as I could go with the transmission still in situ. I'm going to have to pull the motor and tranny out at some point, but not for a while, probably not before the rear of the car is a lot further advanced. When it comes to painting the underside, I'm  not worried about aesthetics - if it looks like it was painted in two parts, so be it.


At the front of the floor pan I worked just past the edge of the toe boards - the rest of this area, the engine compartment, and the fenders, fender aprons etc will be tackled in cleanup phase two. This was the one area of the underside where I thought I might find some rust...but there wasn't any. There is one large hole on the passenger side where the after market ac drain hose was poked through the floor by some butcher. There is a smaller hole close by which looks like it might have been an earlier attempt to drill through the floor. The same PO or ac installer also butchered the firewall, but that is a story for another day...my intention is to patch and/or weld up these holes and several others at a later date.


One place that was really tough to get at, even with a very small wire brush on my drill, was the area behind the front torque boxes. It is going to be tough to get every bit of surface rust out of this tight space - I'll just have to hit this bit extra hard with the zero rust later on.


Another tough spot was the area behind the rear torque boxes - I left this bit until near the end because it was mostly obscured by the suspension. There was a medium covering of sound deadener in this area.


Cleaned it up as much as I could with the angle grinder. This is another area that needs to be hit with a smaller wire wheel in due course.


The only place where I encountered surface rust was at the frame rails and surrounding areas right at the back of the car.


Cleaning up these areas was rather tedious, as there was very little room to work in and I had to mainly work with the edge of the wire wheel rather than the flat part. The passenger side came out pretty good with nothing more than surface rust to worry about.


The driver side was more difficult because the gap between the frame rail and the lip at the edge of the gas tank opening is smaller at this side. I am going to have quite a bit of work to do here.


It was while I was finishing up that I found my first rust holes! There they are, in the bottom edge of the drivers side quarter. I actually remember my father drilling a hole in the equivalent position in his '73 Consul - at the time his trunk lid was leaking, and instead of trying to find the source, he just drilled an escape hole. I will be looking into an alternative solution for my car, probably involving a welder and some replacement steel...


There is one other rust hole I know about, but since I've been aware of it since day one, I keep forgetting about it - maybe subconsciously I'm wishing it would disappear? This hole is just in front of the driver side rear wheel arch. It seems to just affect the outer skin; the wheel arch is solid at least....I'll be moving onto the interior next, so I guess I'll find out for sure then.
